Complete generator stator rewinding
The customer operates a generator system that required an inspection to determine damages and partial repairs.
- Goals
-
- Life Extension
- Increase Power Output
- Sectors
-
- Power generation
- Asset
-
- Generators
- Location
- Caracas, Venezuela
Project Overview
The customer, located in Venezuela, operates a generator system that required an inspection to determine damages and partial repairs.
Key Challenges
Equipment was shut down because it presented a ground failure between coils & supports.
With an uncommon coil design & the type of failure, it was necessary to offer a winding major repair.
The EthosEnergy Solution

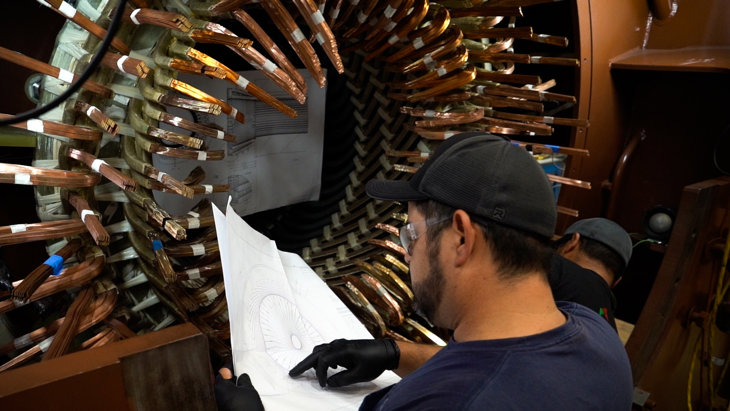

A FaroArm® was used to develop coil drawings as a special winding design & reverse engineering were required. After installation of the winding, electrical tests were performed according to international standards & industry procedures with optimal results.
Project Highlights
The equipment remains operational over two years after the repairs, performing beyond original expectation. Rewinding was performed in-country. Other key highlights of the project are:

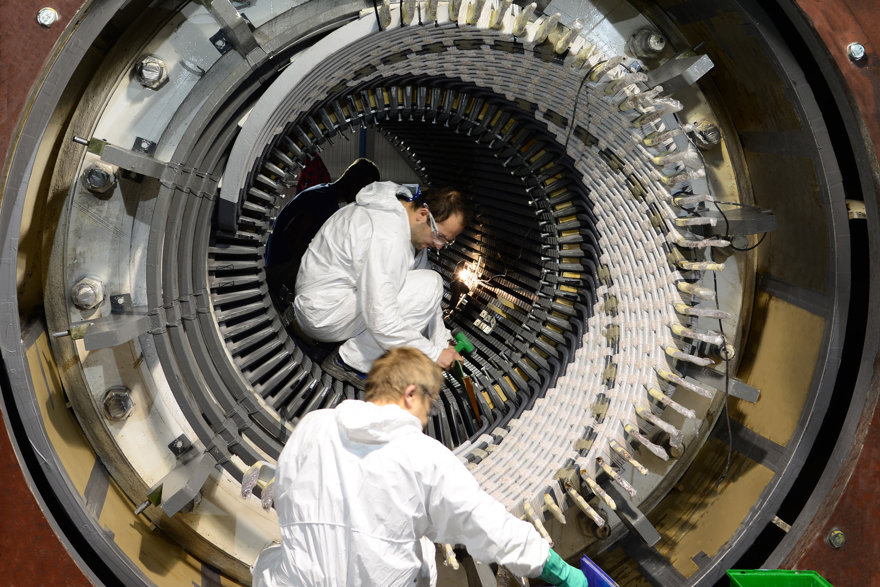

Generator stator rewind on GEC ALSTHOM on customer site.
29-day turnaround
11 kV; 130 MW, Air-cooled.
